The Roebelline consist of a Stripping Machine and a Roebel Press which are positioned in a row and which are connected electrically to combine their functions. The Stripping Machine is designed to straighten, to strip ends and to cut single copper strands coming from a spool.
Roebel Press AT-RP / Röbelpresse
The Roebel press with ejection unit is designed for the ejection of cut-off-copper-strands and for bending these copper strands into Roebel bars.
Brush Grinding Machine AT-BGM / Bürstenschleifmaschine
The stripping unit is installed at the semi-auto Roebelline AT-RL and the fully automatic Roebelline MR-300. The stripping unit consists of two independent stripping stations, one horizontal and one vertical.

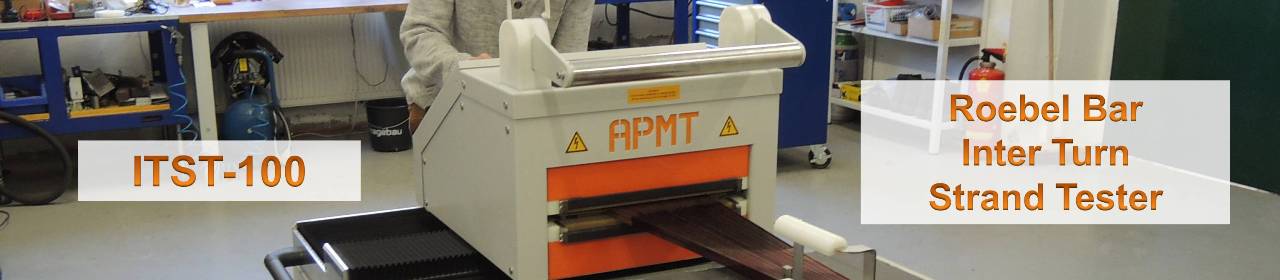

Roebel Bar Interturn Strand Tester AT-ITST / Röbelstab Teilleiter Messgerät
The Interturn strand tester was developed for the measurement of straight bar short circuits after consolidation of the straight bar section. The AT-ITD is designed for two-rowed bar types.
Pole Coil Brazing Machine AT-PCBM / Polspule-Lötmaschine
The semi-automatic Pole Coil Brazing Machine PCBM is build for manufacturing of pole coils by inductive brazing of the coil angles. The machine is designed with 4 brazing towers with integrated hydraulic brazing joint press.
Pole Coil Consolidation Press AT-PCCP / Polspulenpresse
Pole coil consolidation press with manually moveable press gantries, induvidually controllable, flexibly combinable. Available with 1 or 2 movable tables.

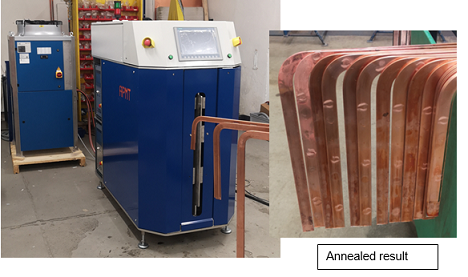

C-Coil Annealing Device AT-CCAD / C-Spulen Glühvorrichtung
This C-Coil annealing device works with protective gas. The protective gas annealing has the advantage that it is a clean process. No finishing work is necessary.
C-Coil Bending- Cutting Machine AT-CCCO-2 / Spulenbiege
The C-Coil-Cut-Off machine is build for bending rotor C-Coils in radial direction and for cutting and milling the end surface of the C-Coil package to the required final shape.
